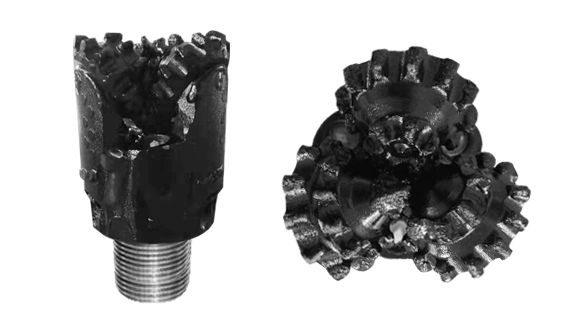

Certification System You are here: Products > Tricon Bits > MT > 4 1/2LS127G
| Product Specification | |
| Type specification（inch）： | 4 1/2 |
| Type specification（mm）： | 114.3mm |
| IADC： | 127 |
| Additional features： | G |
| Formation： | Soft Formation of Low Crushing Resistance and High Drillability |
| Drilling condition： | rotary drilling、high temp.drilling、deep drilling、motor drilling |
| Bearing Type： | journal bearing |
| Total teeth count： | 62 |
| Gage row teeth count： | 36 |
| Number of gage rows： | 3 |
| Number of inner rows： | 4 |
| Journal angle： | 36° |
| Offset： | 5 |
| API connection(REG pin)： | 2 3/8 |
| Weight on bit(KN)： | 40-114 |
| Rotary speed(Rpm)： | 300-60 |
| Recommened upper torqueKN.M： | 4.1-4.7 |
